CNA100 Ultra-low noise current amplifier

CNA100 Ultra-low noise current amplifier

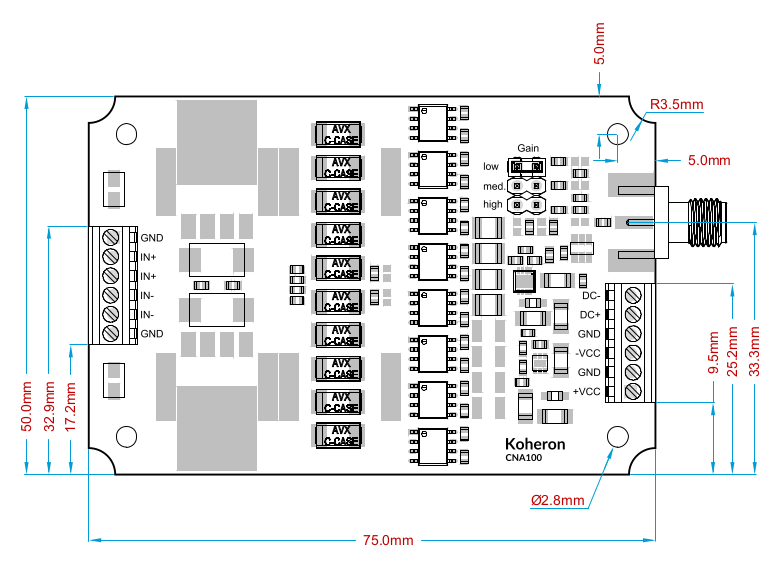

CNA100 Ultra-low noise current amplifier CNA100 Ultra-low noise current amplifier current noise density CNA100 Ultra-low noise current amplifier frequency response CNA100 Ultra-low noise current amplifier mechanical dimensions

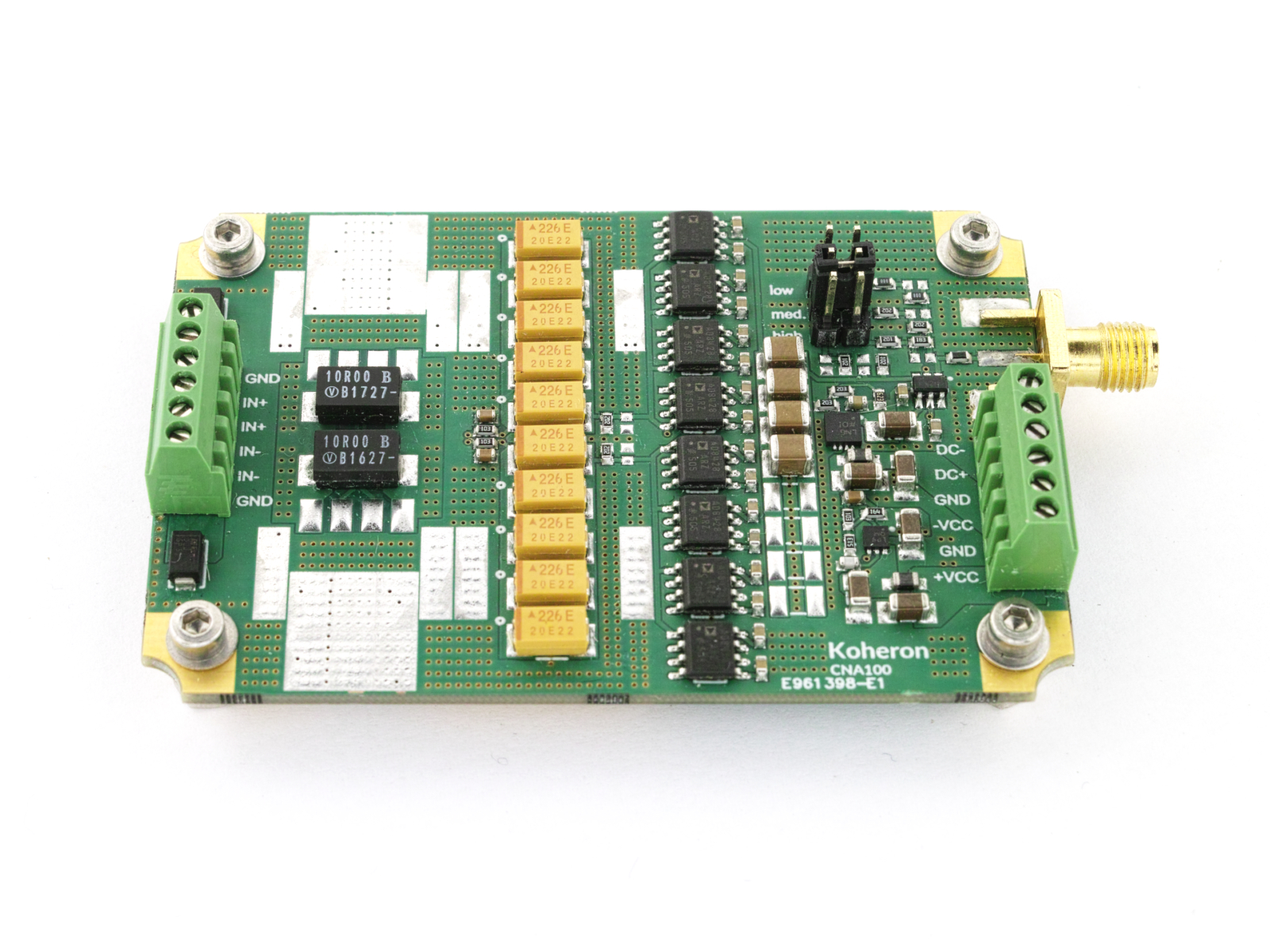

Koheron CNA100 is a current amplifier designed for the characterization of laser drivers. The ultra-low current noise floor of 120 pA/√Hz is obtained by sensing the voltage across a 5 Ω precision resistor with an instrumentation amplifier with less than 600 pV/√Hz input-referred voltage noise and 2.6 MHz bandwidth. The DC voltage across the precision resistor is also available on a screw terminal.

Resources

Specifications

CNA100-500
Current amplifier
Maximum current500 mA
Sensing resistor5 Ω
Noise floor120 pA/√Hz
Gainlow setting10 kV/A
Gainmedium setting50 kV/A
Gainhigh setting200 kV/A
CouplingAC
3 dB bandwidth2.6 MHz
AC cutoff frequency at 3 dB1.4 Hz
0.1 dB bandwidth300 kHz
AC cutoff frequency at 0.1 dB10 Hz
Output impedance50 Ω
Other
Outside dimensions63 mm x 53 mm x 13 mm
Weight31 g
Positive supply voltage6 V to 12 V
Negative supply voltage-12 V to -6 V
Operating temperature0 °C to 50 °C

Characterization

Noise floor

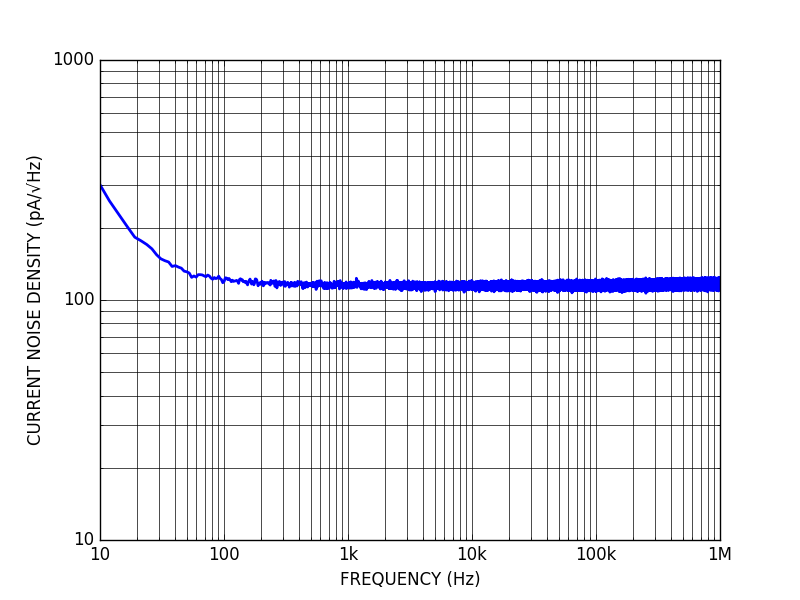

The figure below shows the input-referred current noise density of the CNA100-500 (no current was flowing across the 5 Ω sensing resistor).

CNA100-500 Ultra-low noise current amplifier current noise density
CNA100-500 current noise density

Frequency response

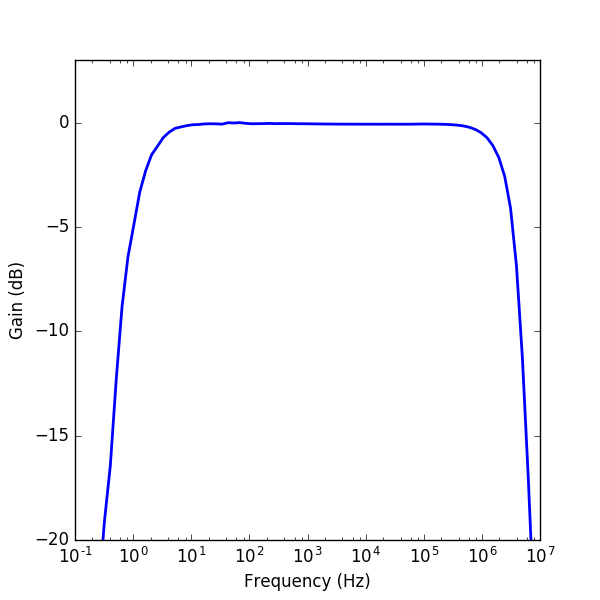

CNA100-500 Ultra-low noise current amplifier frequency response
CNA100-500 frequency response

Quickstart

  1. Supply +VCC with +6V and then -VCC with -6V.
  2. Connect the current to be sensed between IN+ and IN-. The current must flow from IN+ to IN-.
  3. The AC-coupled amplified output is available at the SMA connector. Gain depends on the jumper setting (low: 10 kV/A, med.: 50 kV/A, high: 200 kV/A).
  4. The DC voltage across the sense resistor can be sensed between the DC+ and DC- pins.
