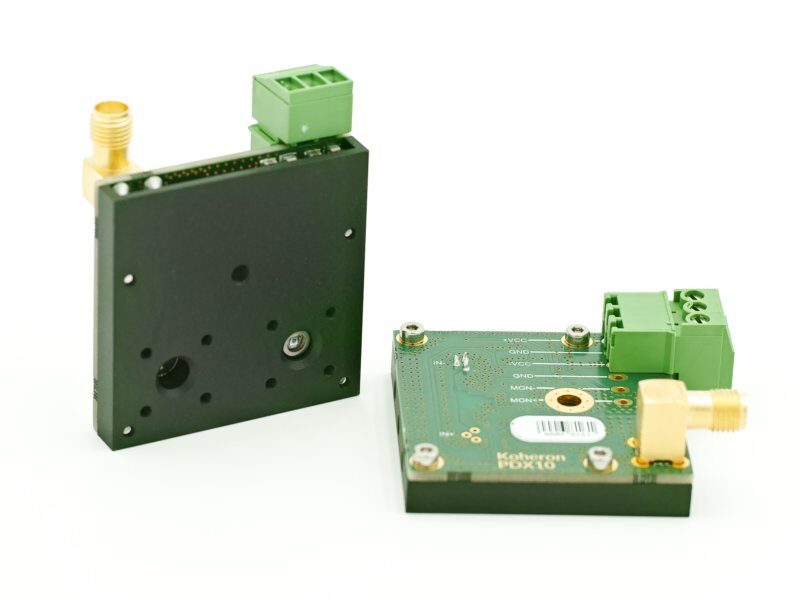

PDX10S-INGAAS User Guide

Last updated: 2025-04-17 PDF version

Quickstart

PDX10S-INGAAS InGaAs free-space photodetector user interface
PDX10S-INGAAS user interface

  1. Supply +VCC pin with a voltage from 10.5 V to 13 V. Supply -VCC pin with a voltage from -9 V to -4 V.

  2. Illuminate the photodetector with a maximum optical power of 1.5 mW for the PDX10S-5 or 7.5 µW for the PDX10S-1M.

  3. The output is available on the SMA connector (50 Ω impedance).
