BTF100 Butterfly laser diode mount

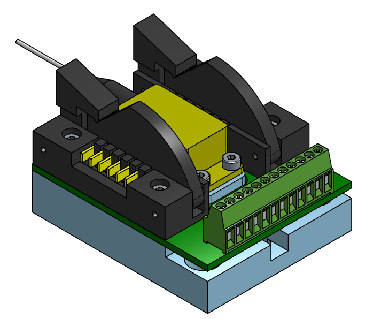

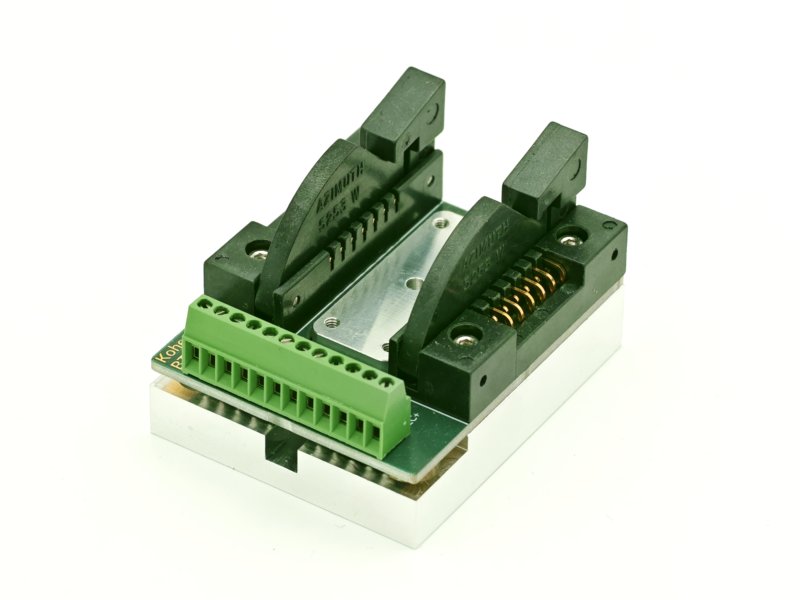

BTF100 Butterfly laser diode mount BTF100 Butterfly laser diode mount with laser BTF100 Butterfly laser diode mount terminal block connections

Koheron BTF100 is a compact laser diode mount for 14-pin butterfly laser packages.

Quantity Price

Resources

Specifications

BTF100-1-TB BTF100-2-TB
Maximum current per pin 2 A 2 A
Outside dimensions 51 mm x 42 mm x 32 mm 51 mm x 42 mm x 32 mm
Weight 70 g 70 g
Operating temperature -40 °C to 85 °C -40 °C to 85 °C

Terminal block connections

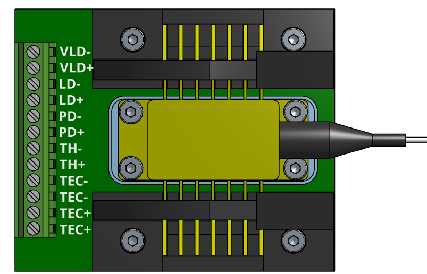

BTF100 Butterfly laser diode mount terminal block connections
BTF100 terminal block connections
  • VLD- / VLD+: Laser cathode / anode voltage sense pins.

  • LD- / LD+: Laser cathode / anode pins

  • PD- / PD+: Monitoring photodiode cathode / anode pins

  • TH- / TH+: Thermistor pins

  • TEC- / TEC+: Thermoelectric Cooler pins

Ordering codes

REFERENCE ATTRIBUTE
BTF100-1-TB Laser type 1
BTF100-2-TB Laser type 2

Export information

REFERENCE COUNTRY OF ORIGIN HS CODE HTSUS ECCN
BTF100-1-TB France 85423990 8542390001 EAR99
BTF100-2-TB France 85423990 8542390001 EAR99
