Laser Board for the Red Pitaya

PRODUCTS > PHOTONICS > MISCELLANEOUS > LASER BOARD FOR THE RED PITAYA
Laser Board for the Red Pitaya

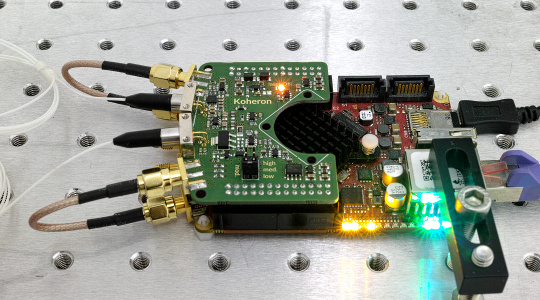

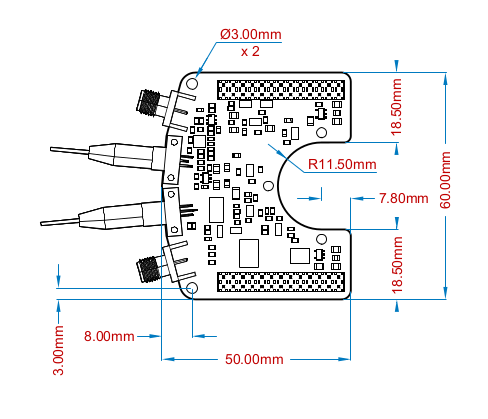

Laser Board for the Red Pitaya Laser Board for the Red Pitaya mounted LBRP Functional Diagram LBRP Dimensions

Koheron laser board for the Red Pitaya features a 1550 nm DFB laser and a 60 MHz photodetector. Combine it with the FPGA and the 125 MSps ADCs and 125 MSps DACs of the Red Pitaya, to develop embedded, low-power fibered photonic instruments.

Resources

Specifications

LBRP2
Laser power 0 - 3 mW
Laser linewidth 6 MHz
Modulation gain 1, 5, 25 mA/V
Modulation bandwidth From DC up to 10 MHz
Photodetector coupling AC
Photodetector gain 100 kV / A
Photodetector bandwidth 60 MHz

Complementary products

Fiber optic isolator

Fiber optic isolator

50 €

Fiber optic circulator

Fiber optic circulator

95 €

Fiber optic mating adapter (10 pack)

Fiber optic mating adapter (10 pack)

25 €

1x2 Fiber optic coupler

1x2 Fiber optic coupler

16 €

Export information

HS code 8541.40.90
Country of Origin France
