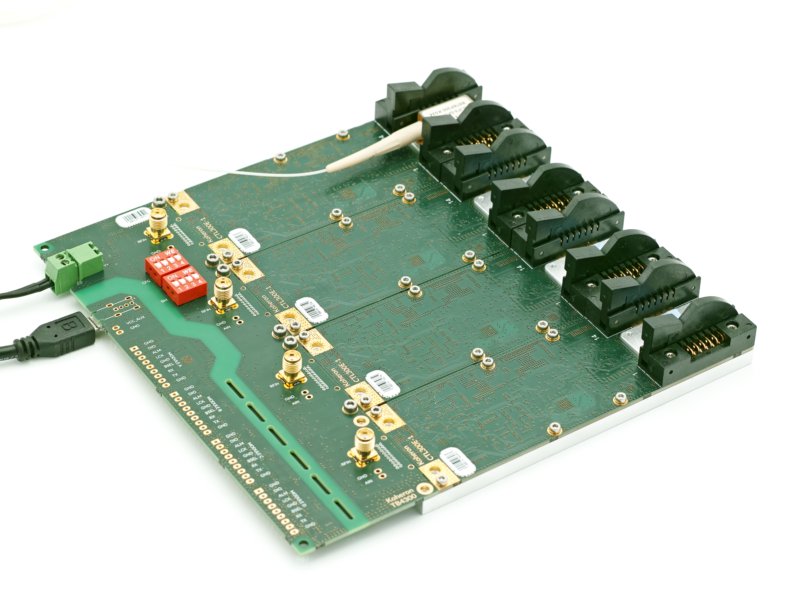

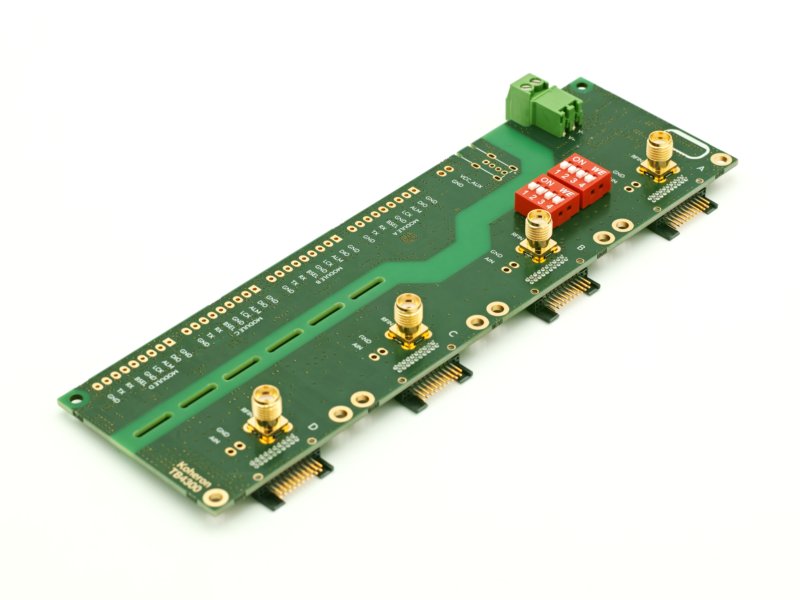

TB4300 Interface board for 4 x CTL300
Koheron TB300 is an interface board for 4 x CTL300E laser diode controllers with an USB-to-4xUART converter. The USB port and the digital IOs have galvanic isolation. The power supply input is protected against overvoltage and reverse voltage.
395 €
Resources
Specifications
| TB4300 | |
|---|---|
| Outside dimensions | 58 mm x 16 mm x 168 mm |
| Weight | 51 g |
| Supply voltage | 11 V to 33 V |
| Operating temperature | -40 °C to 85 °C |
