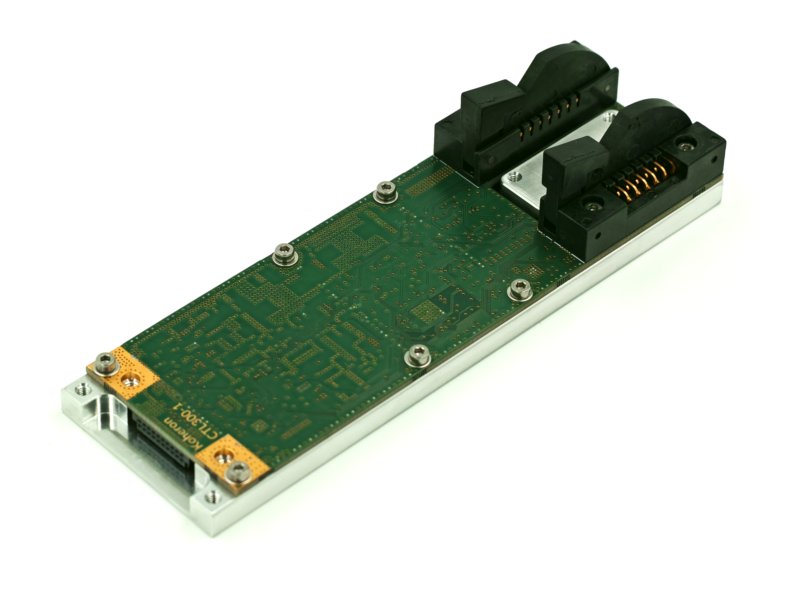

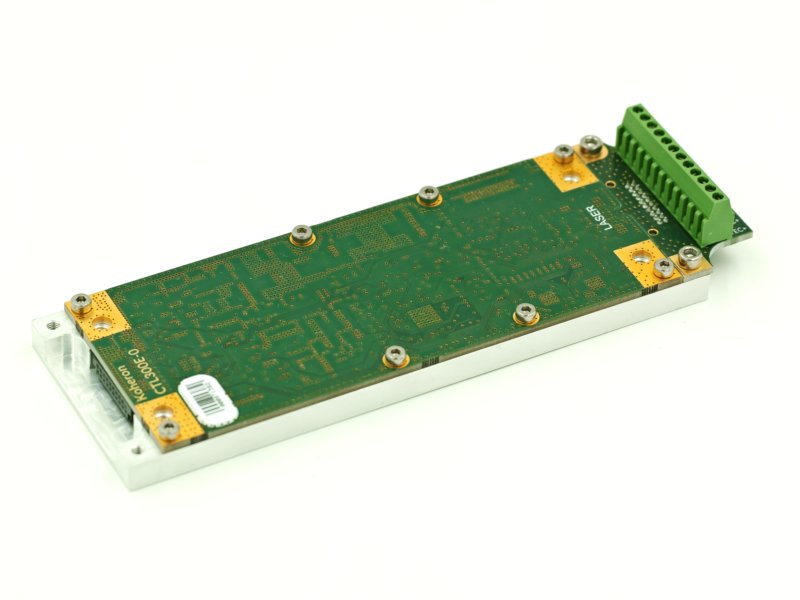

CTL300E Industrial laser diode controller

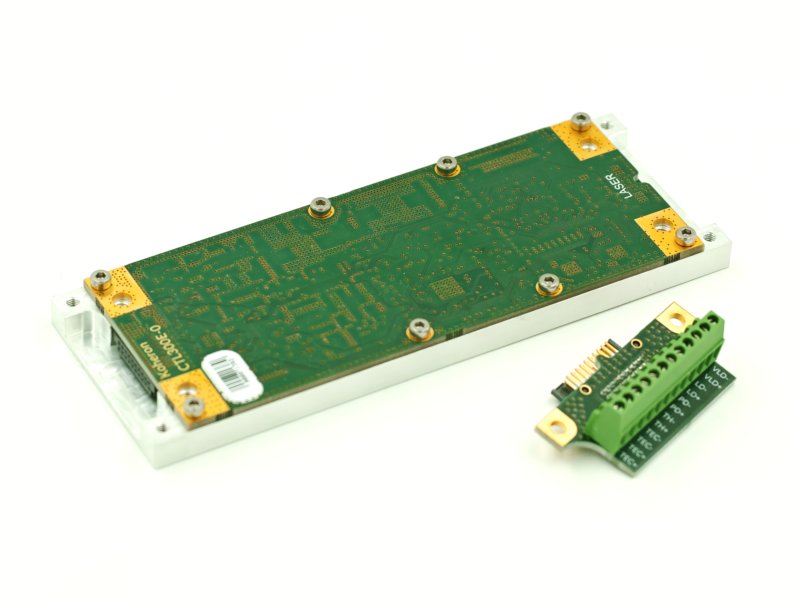

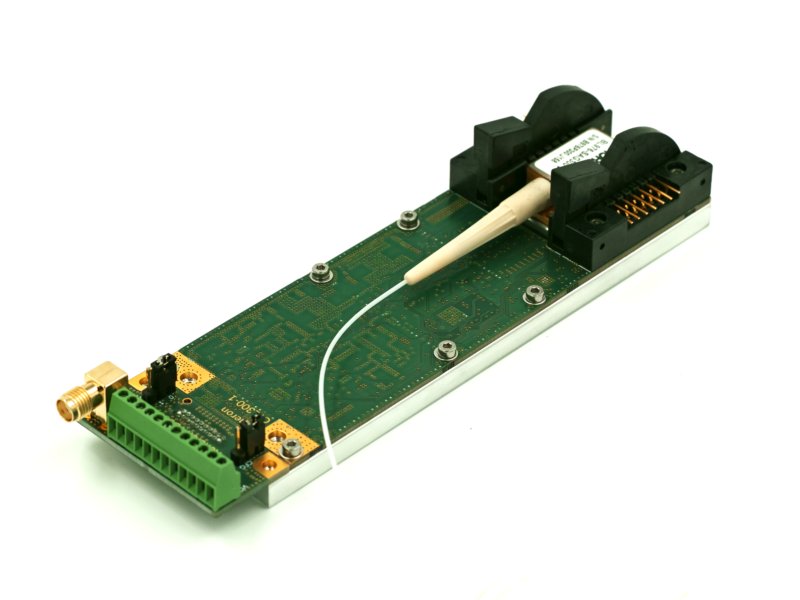

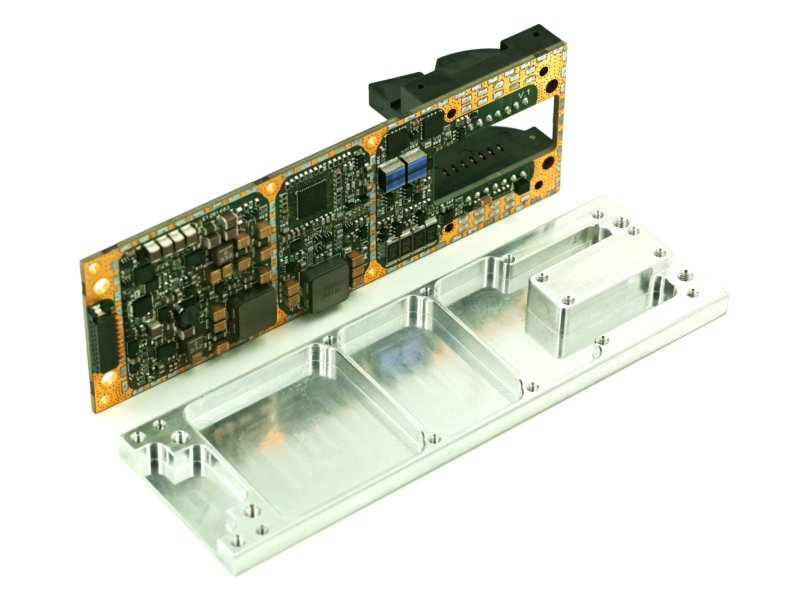

CTL300E Industrial laser diode controller CTL300E Industrial laser diode controller inside CTL300E Industrial laser diode controller with TB300 laser CTL300E Industrial laser diode controller CTL300E Industrial laser diode controller disassembled CTL300E Industrial laser diode controller current noise density CTL300E Industrial laser diode controller modulation frequency response

Koheron CTL300E is a rugged laser diode controller with the following features:
- High-efficiency current driver up to 1600 mA.
- ±4.5 V / 2 A TEC controller.
- Wide input supply voltage range: 6 V to 33 V.
- -40 °C to 85 °C operating temperature range.
- On-board monitoring and diagnostics.
- Modulation input port with 5 MHz bandwidth.
- Fast switching between two independent current setpoints via digital input.
- Mates with the TB300 breakout board sold separately.

Quantity Price

Resources

Specifications

CTL300E laser controller is available for type 1 lasers (CTL300E-1-), type 2 lasers (CTL300E-2-) and in a screw terminal version (CTL300E-0-).

400 800 1200 1600
Current driver
Laser current 10 mA to 425 mA 15 mA to 850 mA 15 mA to 1275 mA 15 mA to 1700 mA
Laser current resolution 7 µA 14 µA 21 µA 28 µA
Compliance voltage 3.8 V 3.8 V 3.7 V 3.7 V
RMS noise(10 Hz to 1 MHz) 0.85 µArms 1.7 µArms 2.5 µArms 3.5 µArms
Current noise density(10 kHz) 0.8 nA/√Hz 1.7 nA/√Hz 2.7 nA/√Hz 3.4 nA/√Hz
Temperature coefficient 15 ppm/°C 15 ppm/°C 15 ppm/°C 25 ppm/°C
Modulation gain 40 mA/V 80 mA/V 120 mA/V 160 mA/V
3 dB modulation bandwidth 5 MHz 5 MHz 5 MHz 4 MHz
TEC controller
Maximum current 2 A 2 A 2 A 2 A
Compliance voltage -4.5 V to 4.5 V -4.5 V to 4.5 V -4.5 V to 4.5 V -4.5 V to 4.5 V
Temperature stability 0.002 °C/°C 0.002 °C/°C 0.002 °C/°C 0.002 °C/°C
Laser power monitor
Photodiode current 0 mA to 2.5 mA 0 mA to 2.5 mA 0 mA to 2.5 mA 0 mA to 2.5 mA
Other
Outside dimensions 131 mm x 42 mm x 28 mm 131 mm x 42 mm x 28 mm 131 mm x 42 mm x 28 mm 131 mm x 42 mm x 28 mm
Weight 95 g 95 g 95 g 95 g
Supply voltage 6 V to 33 V 6 V to 33 V 6 V to 33 V 6 V to 33 V
Operating temperature -40 °C to 85 °C -40 °C to 85 °C -40 °C to 85 °C -40 °C to 85 °C
Compatible lasers Floating diodes Floating diodes Floating diodes Floating diodes

More Laser drivers

Current driver

Bias switching

The CTL300E offers fast switching between two independent current setpoints. The two setpoints are defined using the UART interface and the BSEL logic input is used to select the desired setpoint channel. Transition time is about 400 ns.

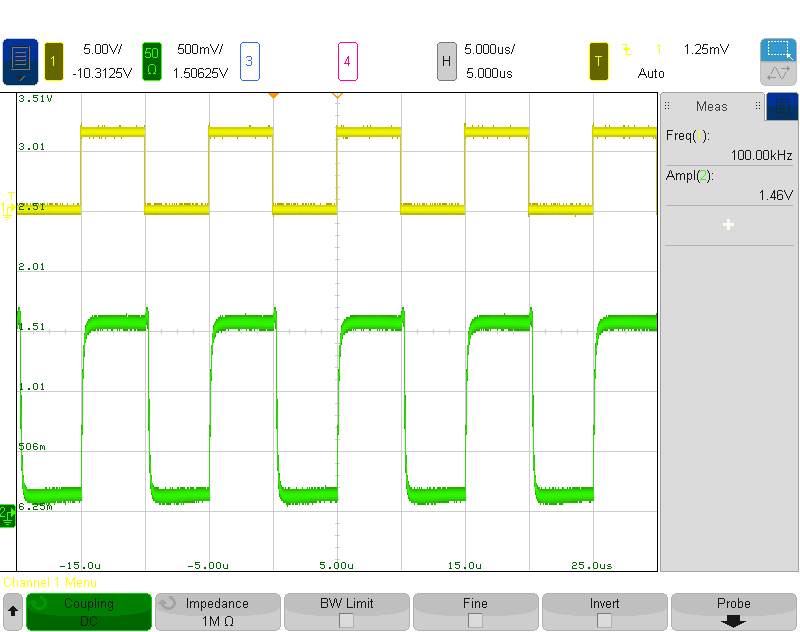

Example of switching between 100 mA and 600 mA using a Thorlabs BL976-SAG300 pump laser diode with 400 mV laser driver voltage drop (yellow: BSEL signal 3.3 V 100 kHz, green: laser diode output power):

CTL300E Industrial laser diode controller bias switching
CTL300E bias switching

Modulation frequency response

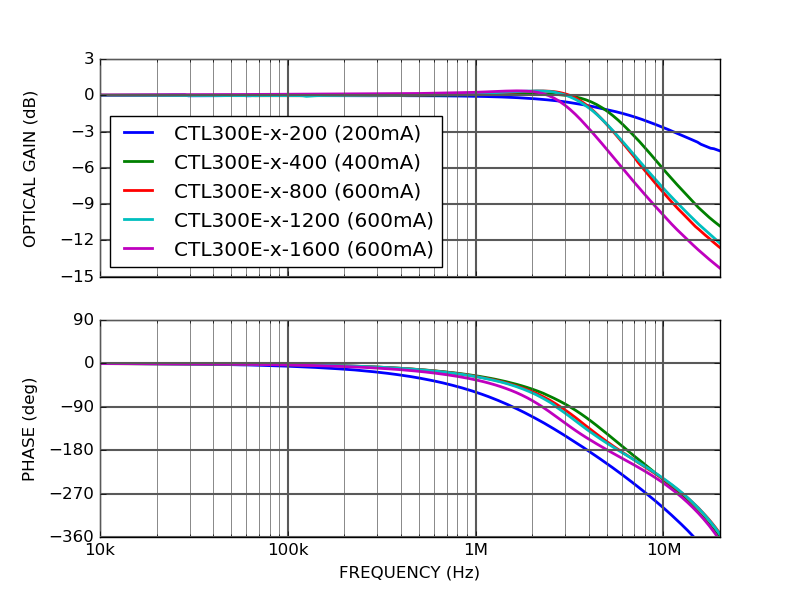

The figure below shows the modulation frequency response of the CTL300E controller measured with 1 Vpp input modulation voltage amplitude and 400 mV laser driver voltage drop.

CTL300E Industrial laser diode controller modulation frequency response
CTL300E modulation frequency response

Stability

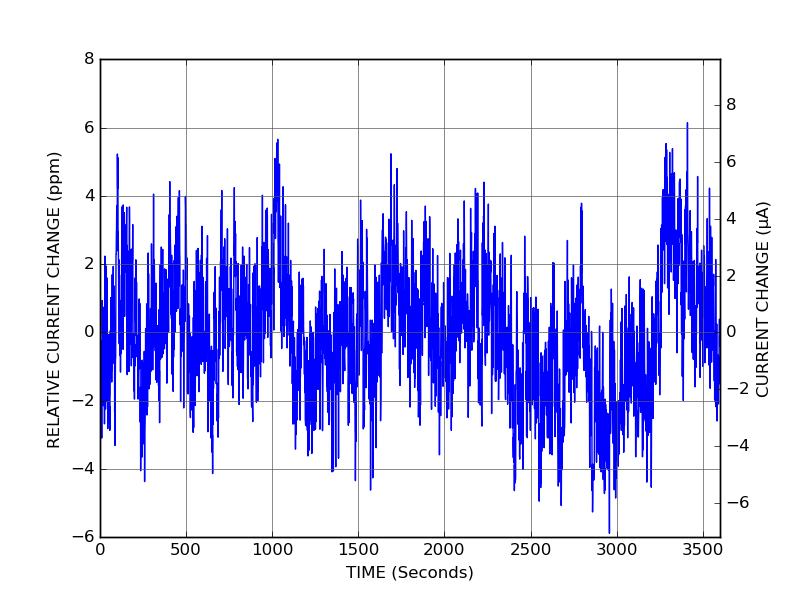

The figure below shows the current stability of the CTL300-1-1200 controller operated at 1200 mA.

CTL300E-1-1200 Industrial laser diode controller one hour current stability
CTL300E-1-1200 one hour current stability

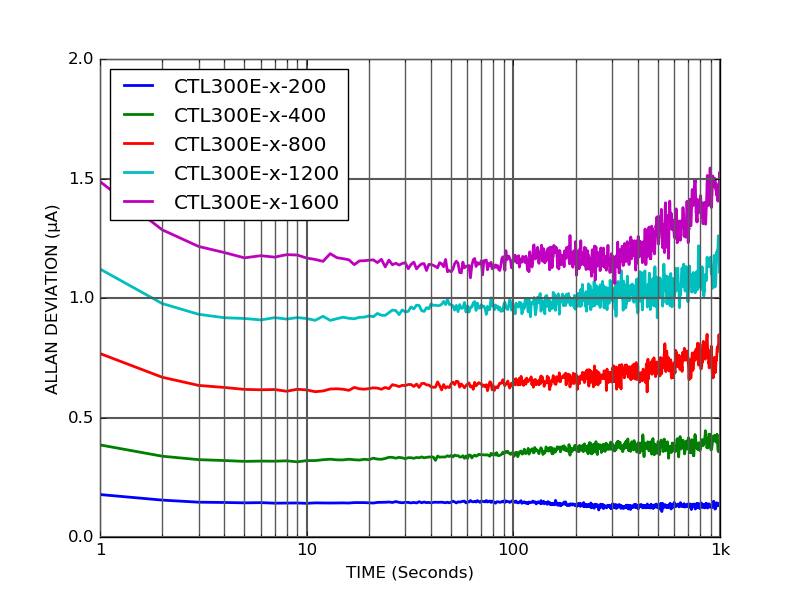

The figure below shows the Allan deviation of the CTL300E controller operating at rated current.

CTL300E Industrial laser diode controller allan deviation
CTL300E allan deviation

Current noise density

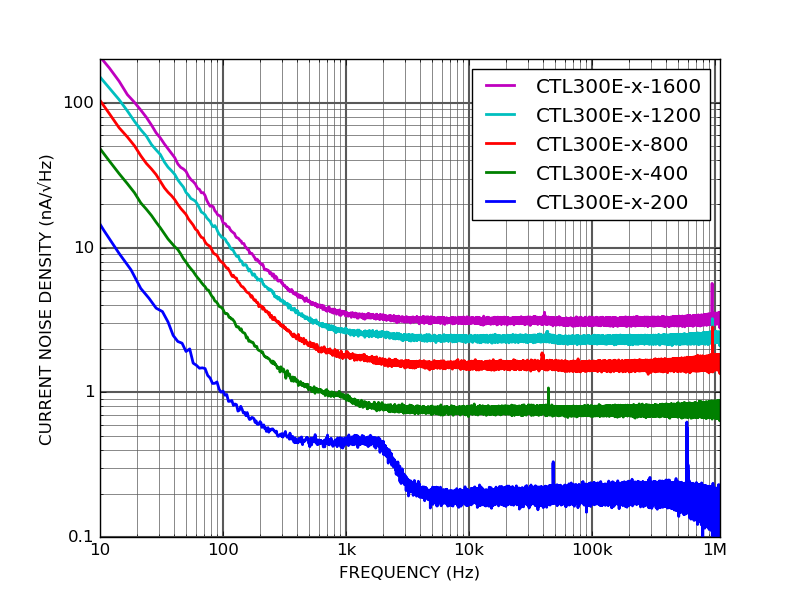

The figure below shows the current noise density of the CTL300E controller operating at rated current with 600 mV laser driver voltage drop.

CTL300E Industrial laser diode controller current noise density
CTL300E current noise density

Temperature stability

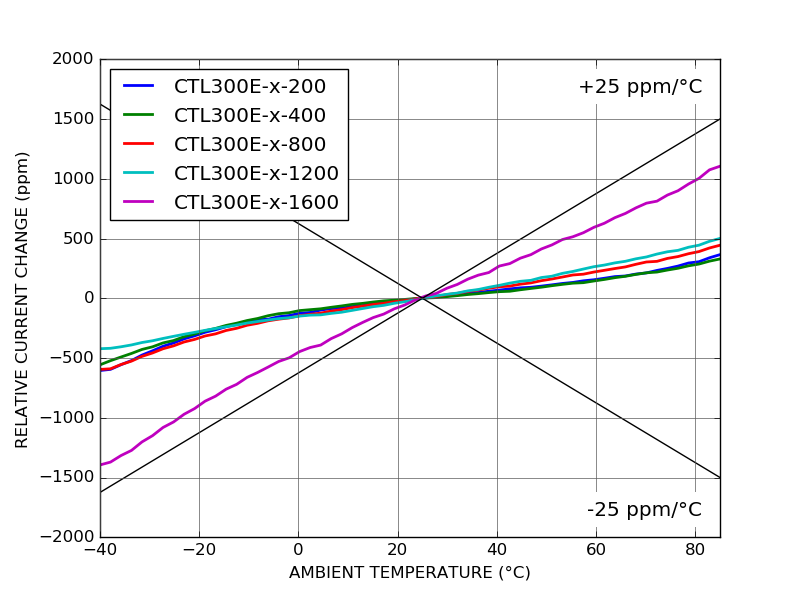

The figure below shows the variation of the output current against the ambient temperature of the CTL300E controller operating at rated current.

CTL300E Industrial laser diode controller temperature coefficient
CTL300E temperature coefficient

Energy efficiency

The CTL300E controller's laser driver is designed to offer a high energy conversion efficiency together with a low current noise. The CTL300E controller maintains high efficiency over a wide range of laser currents and input voltages.

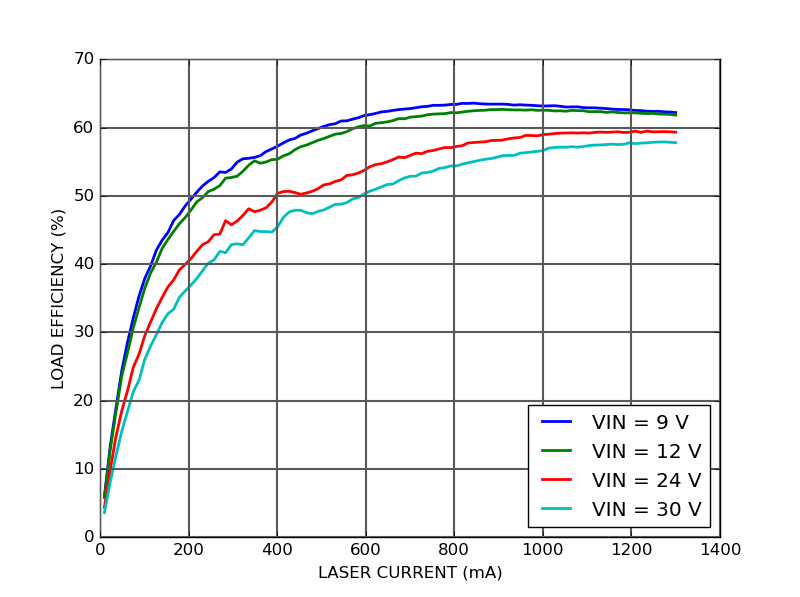

The figure below shows the overall load efficiency (= laser electrical power / input power) of a CTL300E-1-1200 controller with 200 mV laser driver voltage drop.

CTL300E-1-1200 Industrial laser diode controller overall load efficiency
CTL300E-1-1200 overall load efficiency

Complementary products

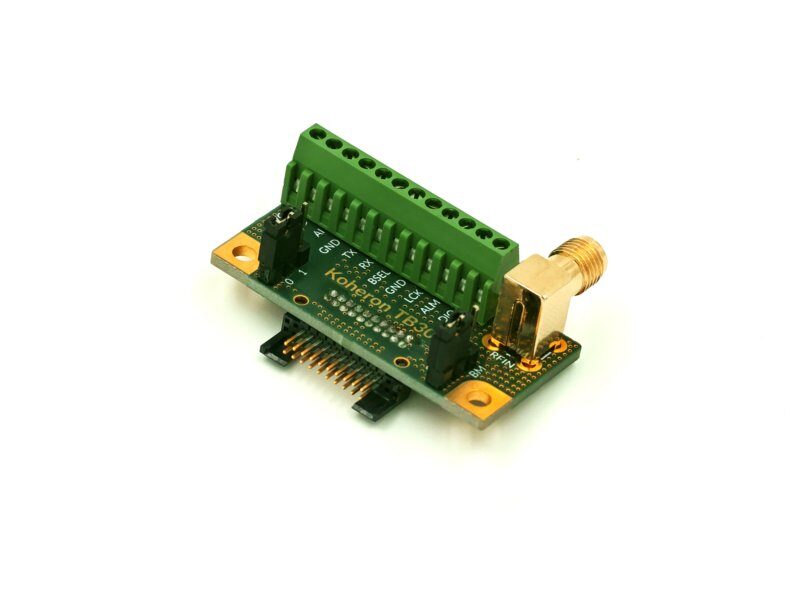

Breakout for CTL300

Breakout for CTL300

50 €

TB300

Ordering codes

PRODUCT NUMBER ATTRIBUTE
CTL300E-1-400 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 400 mA
CTL300E-1-800 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 800 mA
CTL300E-1-1200 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 1200 mA
CTL300E-1-1600 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 1600 mA
CTL300E-2-400 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 400 mA
CTL300E-2-800 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 800 mA
CTL300E-2-1200 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 1200 mA
CTL300E-2-1600 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 1600 mA
CTL300E-1-400-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 400 mA
CTL300E-1-800-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 800 mA
CTL300E-1-1200-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 1200 mA
CTL300E-1-1600-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 1600 mA
CTL300E-2-400-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 400 mA
CTL300E-2-800-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 800 mA
CTL300E-2-1200-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 1200 mA
CTL300E-2-1600-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 1600 mA
CTL300E-0-400 Laser mount Screw terminal / Laser current 400 mA
CTL300E-0-800 Laser mount Screw terminal / Laser current 800 mA
CTL300E-0-1200 Laser mount Screw terminal / Laser current 1200 mA
CTL300E-0-1600 Laser mount Screw terminal / Laser current 1600 mA
