PDX10B-SI User Guide

Last updated: 2022-03-28 PDF version

Quickstart

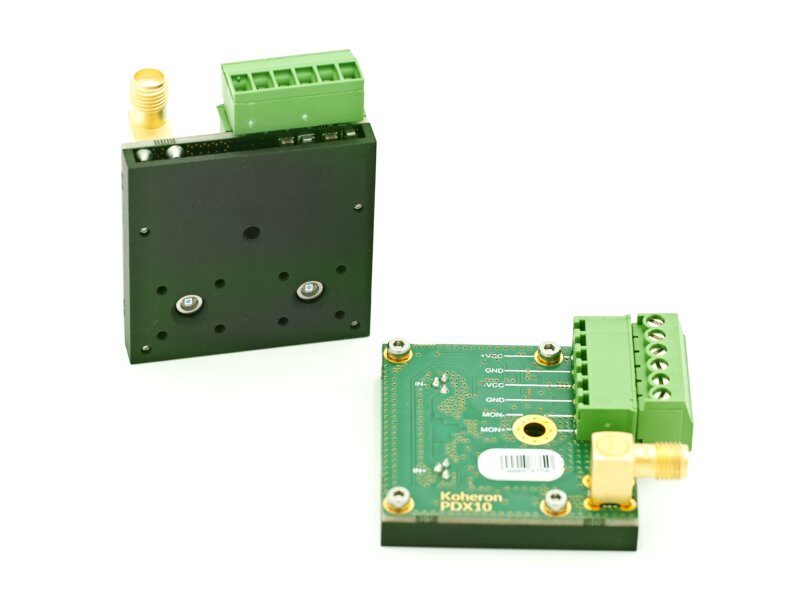

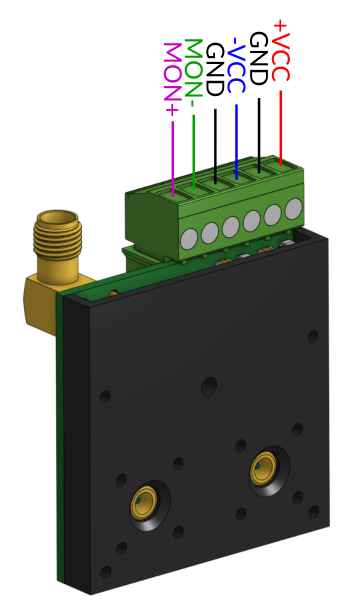

PDX10B-SI Si free-space blanced photodetector user interface
  1. Supply +VCC pin with a voltage between 5.5 V and 9 V (6 V nominal). Supply -VCC pin with a voltage between -5.5 V and -9 V (-6 V nominal).

  2. Illuminate the photodiodes with a maximum of 2 mW optical power.

  3. Use MON+ and MON- outputs to align and balance the power on the photodiodes.

  4. The output is available on the SMA connector (50 Ω impedance).
