Ultra low noise high-voltage laser driver
![DRV110 Ultra low noise high-voltage laser driver DRV110 Ultra low noise high-voltage laser driver](https://assets.koheron.com/images/products/drv110/DRV110.jpg?01072024141256)
![DRV110 Ultra low noise high-voltage laser driver DRV110 Ultra low noise high-voltage laser driver](https://assets.koheron.com/images/products/drv110/DRV110.jpg?01072024141256)
![DRV110 Ultra low noise high-voltage laser driver current noise DRV110 Ultra low noise high-voltage laser driver current noise](https://assets.koheron.com/images/products/drv110/DRV110_current-noise.png?01072024141256)
![DRV110 Ultra low noise high-voltage laser driver temperature coefficient DRV110 Ultra low noise high-voltage laser driver temperature coefficient](https://assets.koheron.com/images/products/drv110/DRV110-A-375_temperature-coefficient.png?01072024141256)
![DRV110 Ultra low noise high-voltage laser driver one hour current stability DRV110 Ultra low noise high-voltage laser driver one hour current stability](https://assets.koheron.com/images/products/drv110/DRV110-A-1200_one-hour-current-stability.png?01072024141256)

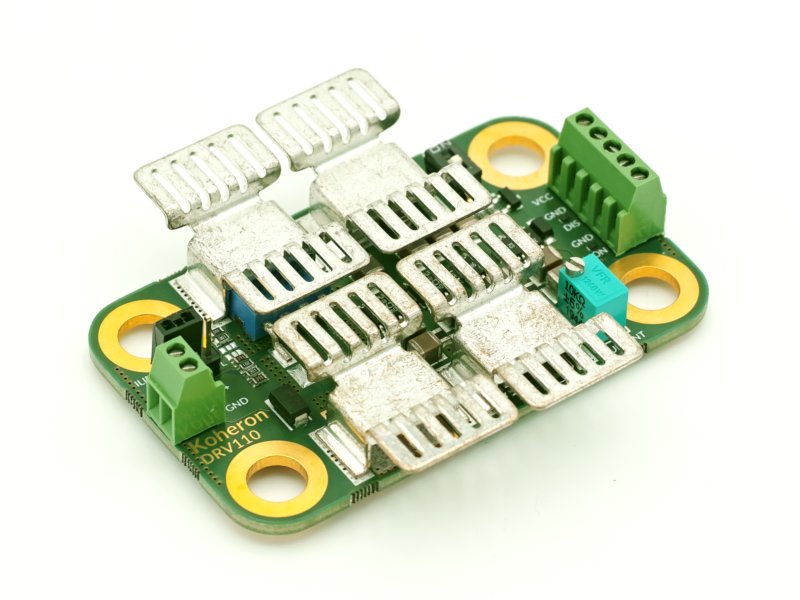

Koheron DRV110 is a current source that can drive up to 1200 mA of current with a compliance voltage of 15 V. Its current noise of 400 pA/√Hz (200 pA/√Hz for the 750 mA version) is below the noise of a 1 A Poissonian current source. The DRV110 can be used to drive high current LEDs below the shot noise limit. Thanks to its high compliance voltage and its low noise performance, the DRV110 is an excellent choice to drive quantum cascade lasers (QCL).
Quantity | Price |
---|
Resources
Specifications
DRV110-A-375 | DRV110-A-750 | DRV110-A-1200 | |
---|---|---|---|
Current driver | |||
Laser current | 0 mA to 375 mA | 0 mA to 750 mA | 0 mA to 1200 mA |
Supply voltage | 3 V to 19.5 V | 3 V to 19.5 V | 3 V to 19.5 V |
Compliance voltage | 15 V | 15 V | 15 V |
Temperature coefficient | 25 ppm/°C | 50 ppm/°C | 50 ppm/°C |
RMS noise(10 Hz to 1 MHz) | 130 nArms | 240 nArms | 480 nArms |
Current noise density(1 kHz) | 110 pA/√Hz | 200 pA/√Hz | 400 pA/√Hz |
Current limit(L setting) | 200 mA | 400 mA | 500 mA |
Current limit(H setting) | 400 mA | 800 mA | 1250 mA |
Slow start(90 % setpoint) | 280 ms | 470 ms | 600 ms |
Other | |||
Outside dimensions | 63 mm x 53 mm x 12 mm | 63 mm x 53 mm x 12 mm | 63 mm x 53 mm x 12 mm |
Weight | 24 g | 24 g | 24 g |
Operating temperature | 0 °C to 50 °C | 0 °C to 50 °C | 0 °C to 50 °C |
Compatible lasers | Cathode-grounded / floating diodes | Cathode-grounded / floating diodes | Cathode-grounded / floating diodes |
More Laser drivers
Current noise

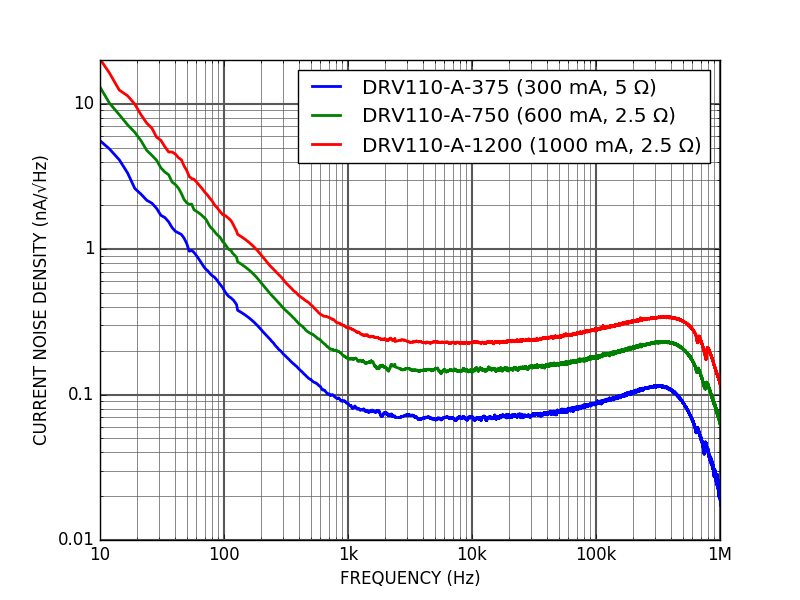

The power spectral density of the DRV110 laser driver current noise characterized using a 5 Ω load (A-375) or a 2.5 Ω load (A-750 and A-1200). Voltage drop in regulator is 1 V.
![DRV110 Ultra low noise high-voltage laser driver current noise DRV110 Ultra low noise high-voltage laser driver current noise](https://assets.koheron.com/images/products/drv110/DRV110_current-noise.png?01072024141256)
Current stability

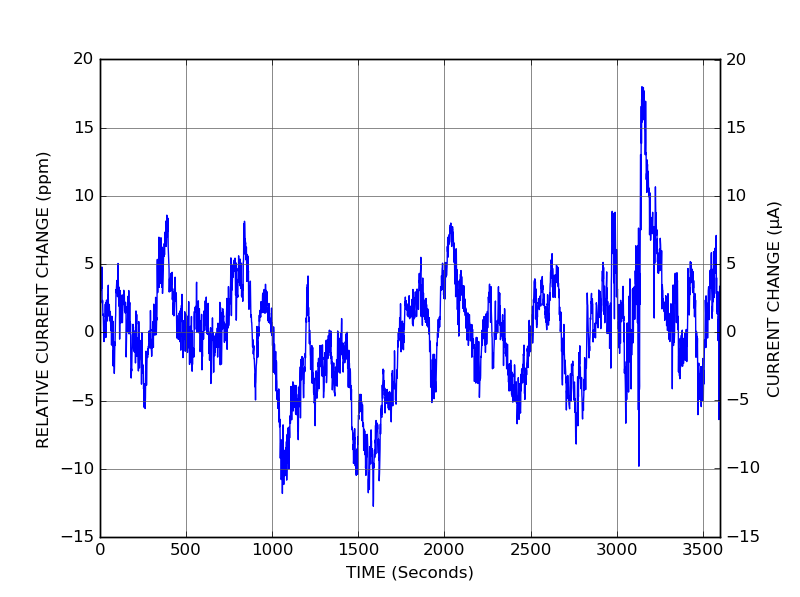

Stability over 1 hour for a DRV110-A-1200 driving 1000 mA in a 10 Ω load.
![DRV110-A-1200 Ultra low noise high-voltage laser driver one hour current stability DRV110-A-1200 Ultra low noise high-voltage laser driver one hour current stability](https://assets.koheron.com/images/products/drv110/DRV110-A-1200_one-hour-current-stability.png?01072024141256)
Temperature coefficient

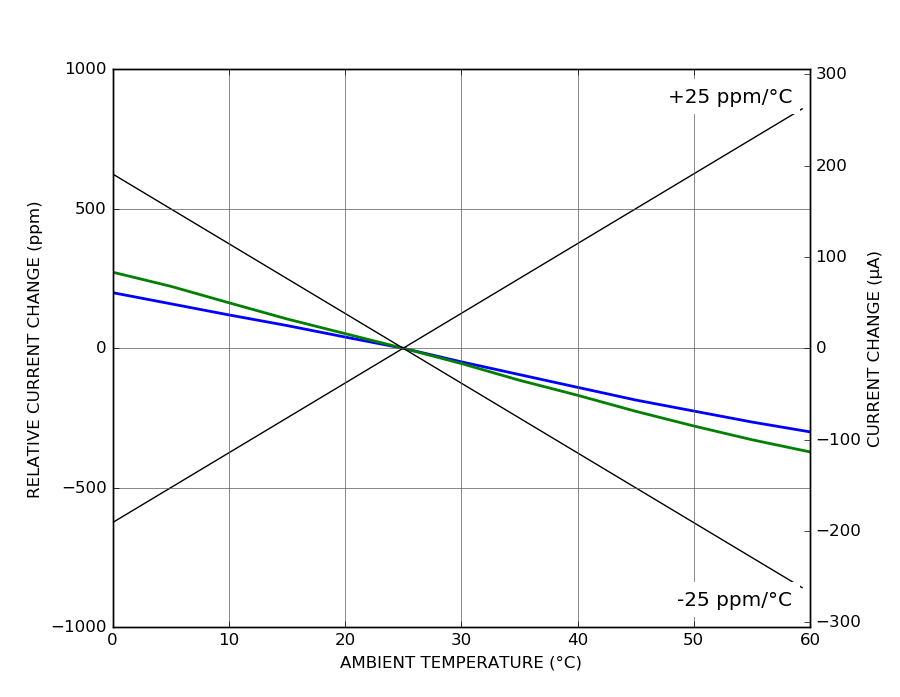

DRV110-A-375 operated at 300 mA in a 10 Ω load. Blue and green are two different samples.
![DRV110-A-375 Ultra low noise high-voltage laser driver temperature coefficient DRV110-A-375 Ultra low noise high-voltage laser driver temperature coefficient](https://assets.koheron.com/images/products/drv110/DRV110-A-375_temperature-coefficient.png?01072024141256)
Revision history
- October 2020 - Update slow start and temperature coefficient specifications.
