Digital butterfly laser diode controller

PRODUCTS > PHOTONICS > LASER DRIVERS > DIGITAL BUTTERFLY LASER DIODE CONTROLLER
CTL200 Digital butterfly laser diode controller
CTL200 Digital butterfly laser diode controller CTL200 Digital butterfly laser diode controller graphical user interface CTL200 Digital butterfly laser diode controller one hour current stability CTL200 Digital butterfly laser diode controller dc modulation transfer function CTL200 Digital butterfly laser diode controller current noise density CTL200 Digital butterfly laser diode controller temperature coefficient

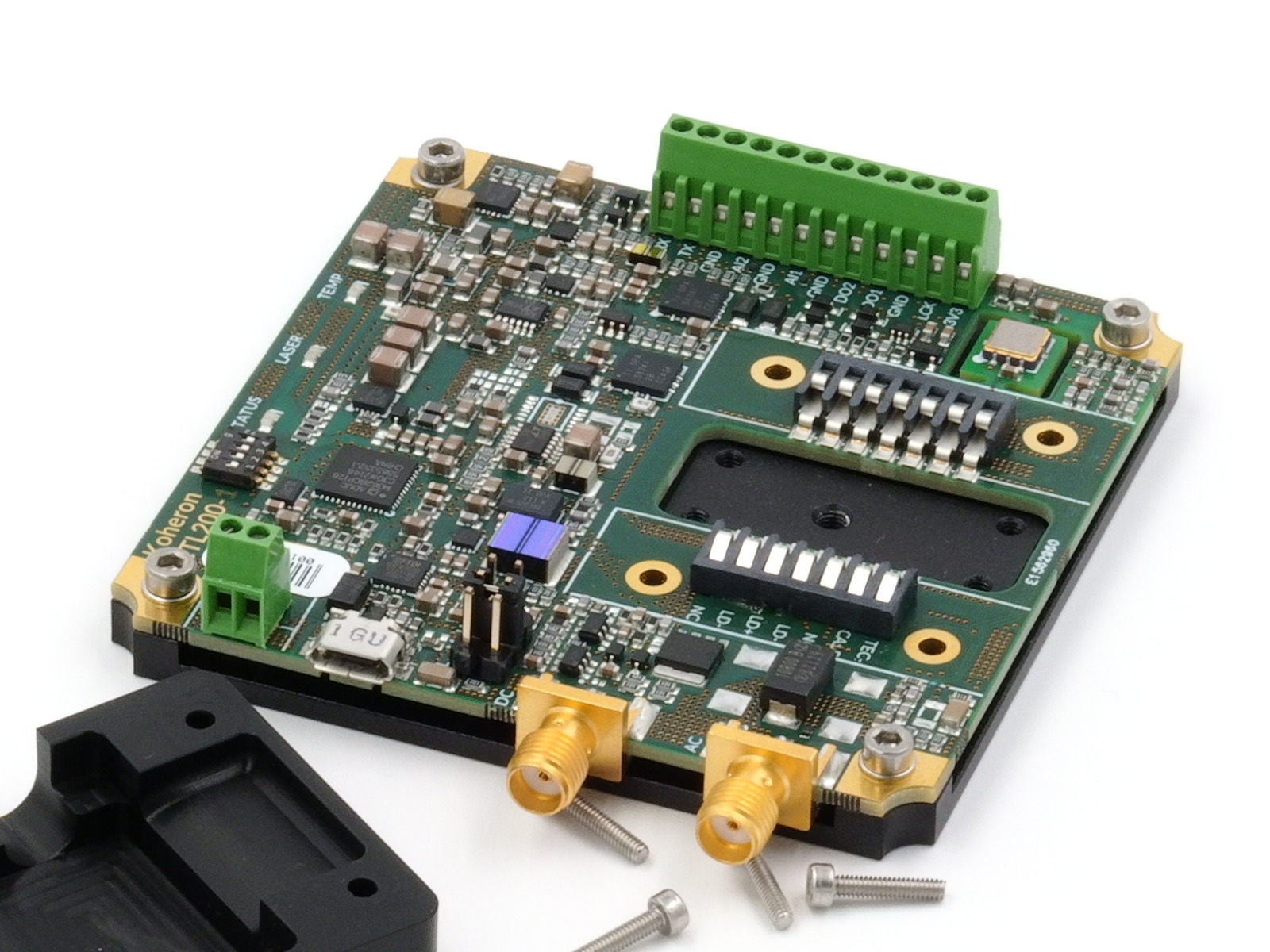

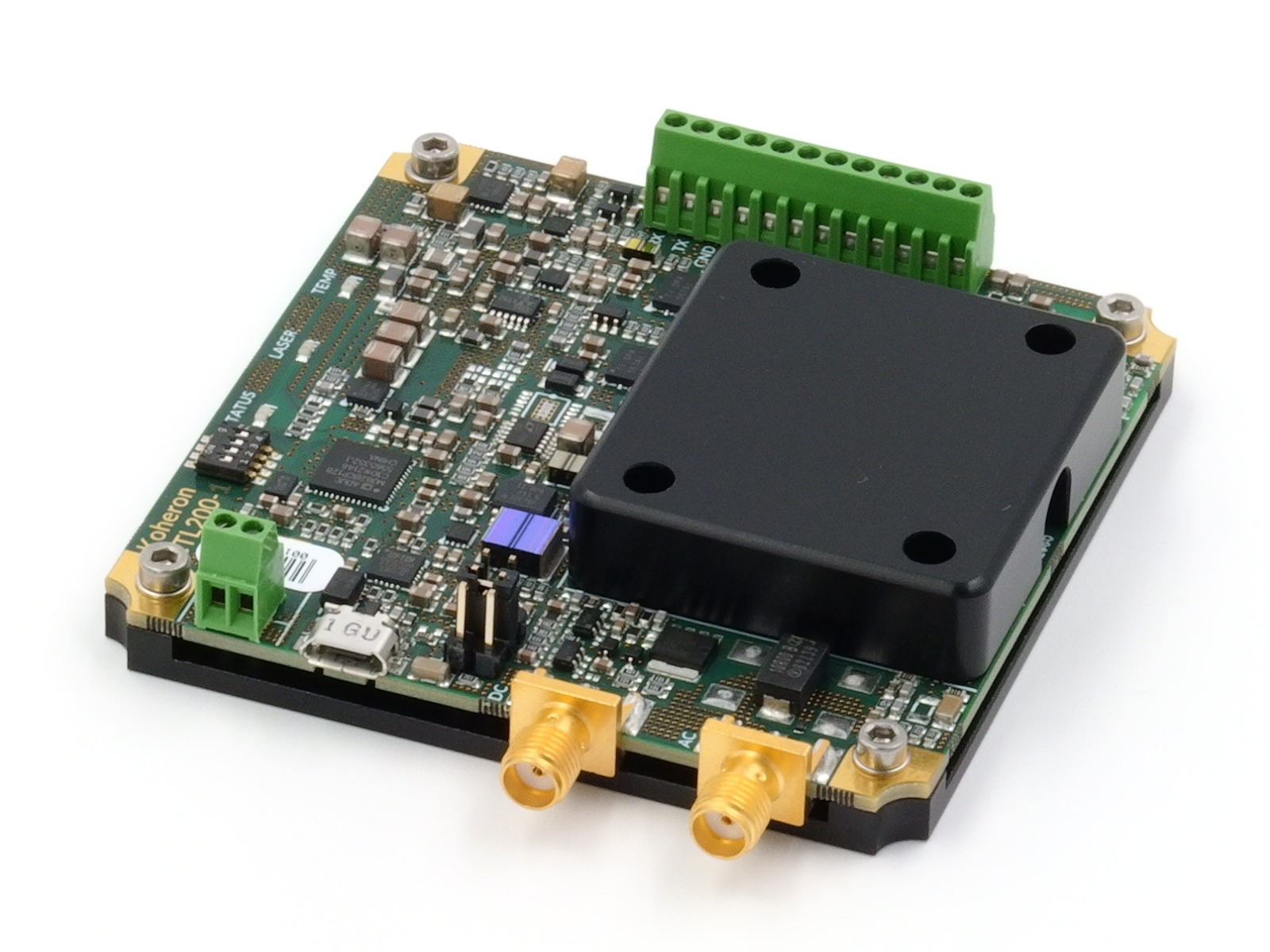

Koheron CTL200 is the digital version of the popular CTL101 analog laser controller. It combines a low noise current driver with modulation and a temperature controller. The CTL200 fits in a 75 mm x 75 mm square, uses a single 5.9 V supply, and can operate between 0 and 50°C. The CTL200 is conduction-cooled. It comes with an aluminum base plate and a zero insertion force socket for easy mounting. The CTL200 is also available in a screw terminal version.

Quantity Price

Resources

Includes

  • 5.9 V 3 A power supply

Specifications

CTL200 laser controller is available for type 1 lasers (CTL200-1-) and type 2 lasers (CTL200-2-).

B-100 B-200 B-400 B-600
Current driver
Laser current 3 mA to 112 mA 5 mA to 225 mA 10 mA to 450 mA 15 mA to 675 mA
Laser current resolution 2.5 µA 5 µA 10 µA 15 µA
Compliance voltage 3.0 V 3.0 V 3.0 V 2.9 V
RMS noise(10 Hz to 1 MHz) 130 nArms 220 nArms 430 nArms 650 nArms
Current noise density(1 kHz) 120 pA/√Hz 230 pA/√Hz 450 pA/√Hz 670 pA/√Hz
Temperature coefficient 20 ppm/°C 20 ppm/°C 20 ppm/°C 20 ppm/°C
AC modulation cutoff frequency 80 kHz 80 kHz 80 kHz 80 kHz
DC modulation
Modulation gain(L setting) 125 µA/V 250 µA/V 500 µA/V 750 µA/V
Modulation gain(M setting) 1.25 mA/V 2.5 mA/V 5 mA/V 7.5 mA/V
Modulation gain(H setting) 12.5 mA/V 25 mA/V 50 mA/V 75 mA/V
3 dB modulation bandwidth 10 MHz 10 MHz 10 MHz 10 MHz
Modulation input impedance 50 Ω 50 Ω 50 Ω 50 Ω
Modulation input range(L or M setting) -1.3 V to 1.3 V -1.3 V to 1.3 V -1.3 V to 1.3 V -1.3 V to 1.3 V
Modulation input range(H setting) -1.3 V to 1.0 V -1.3 V to 1.0 V -1.3 V to 1.0 V -1.3 V to 1.0 V
TEC controller
Maximum current 0.8 A 1.2 A 1.2 A 1.2 A
Compliance voltage -3 V to 3 V -3 V to 3 V -3 V to 3 V -3 V to 3 V
Temperature stability 0.002 °C/°C 0.002 °C/°C 0.002 °C/°C 0.002 °C/°C
Laser power monitor
Photodiode current 0 mA to 2.5 mA 0 mA to 2.5 mA 0 mA to 2.5 mA 0 mA to 2.5 mA
Other
Outside dimensions 75 mm x 85 mm x 27 mm 75 mm x 85 mm x 27 mm 75 mm x 85 mm x 27 mm 75 mm x 85 mm x 27 mm
Weight 104 g 104 g 104 g 104 g
Supply voltage 5.7 V to 6.5 V 5.7 V to 6.5 V 5.7 V to 6.5 V 5.7 V to 6.5 V
Operating temperature 0 °C to 60 °C 0 °C to 60 °C 0 °C to 60 °C 0 °C to 50 °C
Compatible lasers Floating diodes Floating diodes Floating diodes Floating diodes

More Laser drivers

Current driver

Current stability

Current stability over 1 hour of a B-400 controller operated at 400 mA.

CTL200-1-B-400 Digital butterfly laser diode controller one hour current stability
CTL200-1-B-400 one hour current stability

Current modulation

The CTL200 controller has two current modulation inputs available on SMA connectors. The DC modulation input allows to modulate the current setpoint between DC and 10 MHz.

CTL200-2-B-600 Digital butterfly laser diode controller DC modulation transfer function
CTL200-2-B-600 DC modulation transfer function

The AC modulation input can be used to modulate the laser above 100 kHz with a modulation gain of 20 mA/V:

CTL200-2-B-600 Digital butterfly laser diode controller AC modulation transfer function
CTL200-2-B-600 AC modulation transfer function

Current noise

The figure below shows the current noise of the CTL200 controller operating at rated current with the modulation gain set to medium:

CTL200 Digital butterfly laser diode controller current noise density
CTL200 current noise density

Temperature stability

The figure below shows the variation of the output current against the ambient temperature for controllers operating at rated current:

CTL200 Digital butterfly laser diode controller temperature coefficient
CTL200 temperature coefficient

Complementary products

Dual power supply New options

Dual power supply

275 €

SPS200

Ordering codes

PRODUCT NUMBER ATTRIBUTE
CTL200-1-B-100 Laser type 1 / Laser current 100 mA
CTL200-1-B-200 Laser type 1 / Laser current 200 mA
CTL200-1-B-400 Laser type 1 / Laser current 400 mA
CTL200-1-B-600 Laser type 1 / Laser current 600 mA
CTL200-2-B-100 Laser type 2 / Laser current 100 mA
CTL200-2-B-200 Laser type 2 / Laser current 200 mA
CTL200-2-B-400 Laser type 2 / Laser current 400 mA
CTL200-2-B-600 Laser type 2 / Laser current 600 mA

Export information

PRODUCT NUMBER COUNTRY OF ORIGIN HS CODE HTSUS ECCN
CTL200-1-B-100 France 90303370 9030333800 EAR99
CTL200-1-B-200 France 90303370 9030333800 EAR99
CTL200-1-B-400 France 90303370 9030333800 EAR99
CTL200-1-B-600 France 90303370 9030333800 EAR99
CTL200-2-B-100 France 90303370 9030333800 EAR99
CTL200-2-B-200 France 90303370 9030333800 EAR99
CTL200-2-B-400 France 90303370 9030333800 EAR99
CTL200-2-B-600 France 90303370 9030333800 EAR99
