DRV10 OEM PCB-mount laser diode driver

PRODUCTS > PHOTONICS > LASER DRIVERS > DRV10 OEM PCB-MOUNT LASER DIODE DRIVER
DRV10 OEM PCB-mount laser diode driver

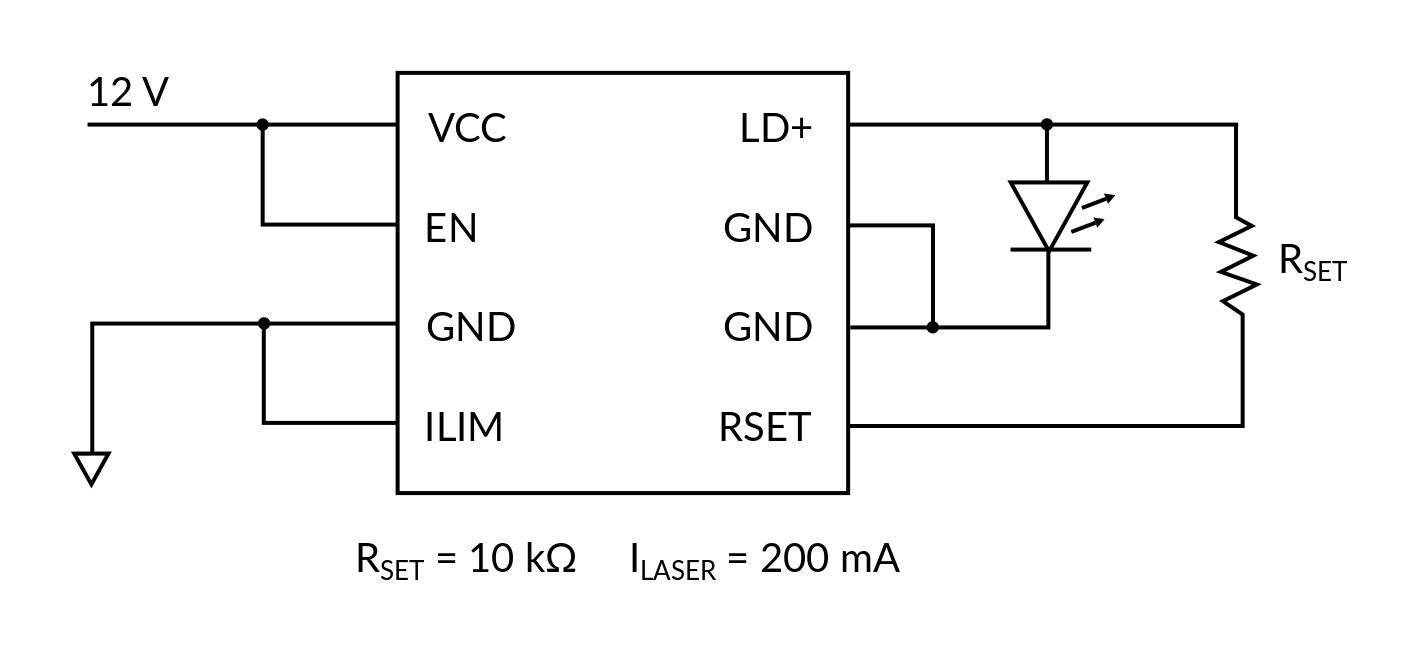

DRV10 OEM PCB-mount laser diode driver DRV10 OEM PCB-mount laser diode driver electrical connections DRV10 OEM PCB-mount laser diode driver current noise

Koheron DRV10 is an OEM PCB-mount low-noise laser driver with 12 V compliance voltage. The DRV10 accepts 3 V to 36 V input voltage with efficiency up to 70%. Laser current is set with an external resistor.

Resources

Specifications

DRV10-200
Compatible lasersCathode-grounded / floating diodes
Current driver
Laser current0 mA to 200 mA
Compliance voltage12 V
Temperature coefficient50 ppm/°C
RMS noise10 Hz to 1.1 MHz200 nArms
Current noise density1 kHz180 pA/√Hz
Current limitadjustable with external resistor
Other
Supply voltage3 V to 36 V
Outside dimensions38 mm x 10 mm x 4 mm
Weight3 g
Operating temperature0 °C to 50 °C

More Laser drivers

Current noise

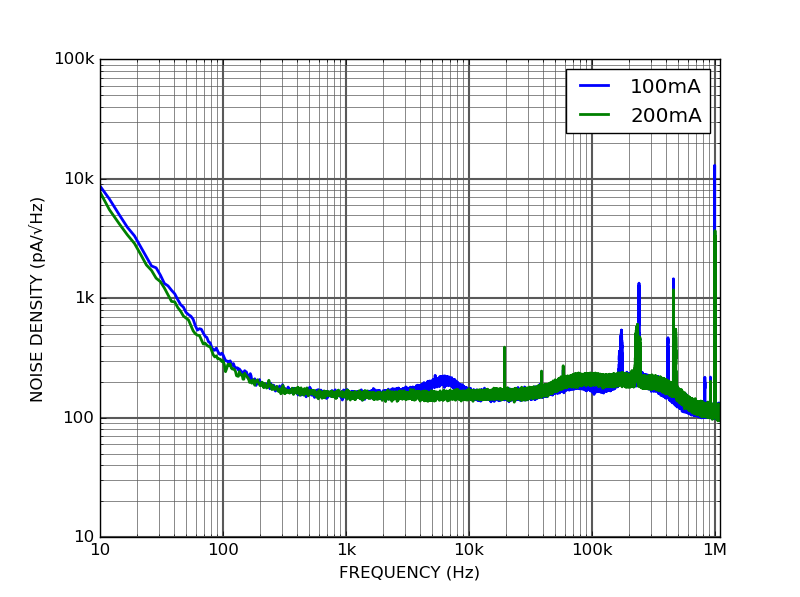

The DRV10 laser diode driver current noise was measured across a 5 Ω resistor with a supply voltage of 5 V.

DRV10 OEM PCB-mount laser diode driver current noise
DRV10 current noise

Integrated noise in the 10 Hz to 1.1 MHz bandwidth is 158 nArms at 100 mA current and 159 nArms at 200 mA current. The DRV10 laser diode driver was supplied from a DC/DC converter. The peak of the current noise at 1 MHz is caused by the laser diode driver itself and will not be reduced by using a quieter power supply.
