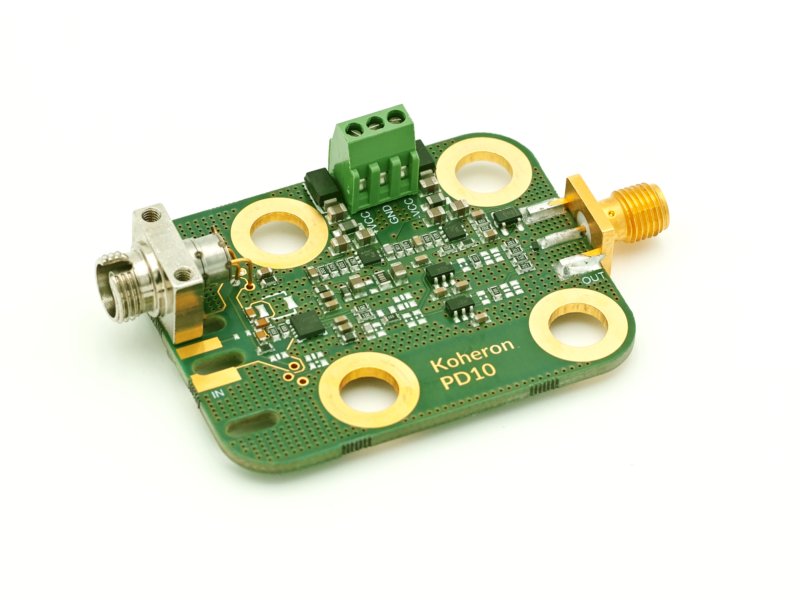

High dynamic range photodetector
![PD10S High dynamic range photodetector PD10S High dynamic range photodetector](https://assets.koheron.com/images/products/pd10s/PD10S.jpg?01072024141256)
![PD10S High dynamic range photodetector PD10S High dynamic range photodetector](https://assets.koheron.com/images/products/pd10s/PD10S.jpg?01072024141256)
![PD10S High dynamic range photodetector small signal frequency response PD10S High dynamic range photodetector small signal frequency response](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_small-signal-frequency-response.png?01072024141256)
![PD10S High dynamic range photodetector power spectral density PD10S High dynamic range photodetector power spectral density](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_power-spectral-density_vs_optical-power.png?01072024141256)
![PD10S High dynamic range photodetector noise equivalent power PD10S High dynamic range photodetector noise equivalent power](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_noise-equivalent-power.png?01072024141256)
Koheron PD10S is a photodetector with 5 kV/A transimpedance gain and 50 MHz bandwidth. With a noise equivalent power spectral density below 2 pW/√Hz at 1 MHz, and up to 0 V to 8.2 V DC output voltage, the PD10S is a good alternative to the PD100-DC photodetector for high dynamic range applications such as power stabilization of CW lasers.
Quantity | Price |
---|
Resources
Specifications
PD10S-5-DC | |
---|---|
Detector | |
Detector type | InGaAs photodiode |
Wavelength range | 900 nm to 1700 nm |
Optical input power | 0 mW to 1.3 mW |
Photodiode connector | FC |
Photodiode active diameter | 300 µm |
Photodiode peak responsivity | 0.9 A/W |
Transimpedance amplifier | |
Small signal bandwidth | 0 Hz to 50 MHz at 3 dB |
Transimpedance gain | 5 kV/A |
Coupling | DC |
Noise Equivalent Power(at 1 MHz) | 2 pW/√Hz |
Output impedance | 50 Ω |
Output voltage range | 0 V to 8.2 V |
Output | SMA female connector |
Power supplies | |
Positive supply voltage | 10.5 V to 13 V |
Negative supply voltage | -9 V to -4 V |
Quiescent current per rail | 40 mA |
Maximum current | 130 mA (positive supply) |
Other | |
Outside dimensions | 63 mm x 38 mm x 14 mm |
Weight | 19 g |
Operating temperature | 0 °C to 50 °C |
Mechanical details | Compatible with M6 metric breadboards (25 mm spacing) |
More Photodetectors
Functional diagram
![PD10S-5-DC High dynamic range photodetector functional diagram PD10S-5-DC High dynamic range photodetector functional diagram](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_functional-diagram.png?01072024141256)
Characterization

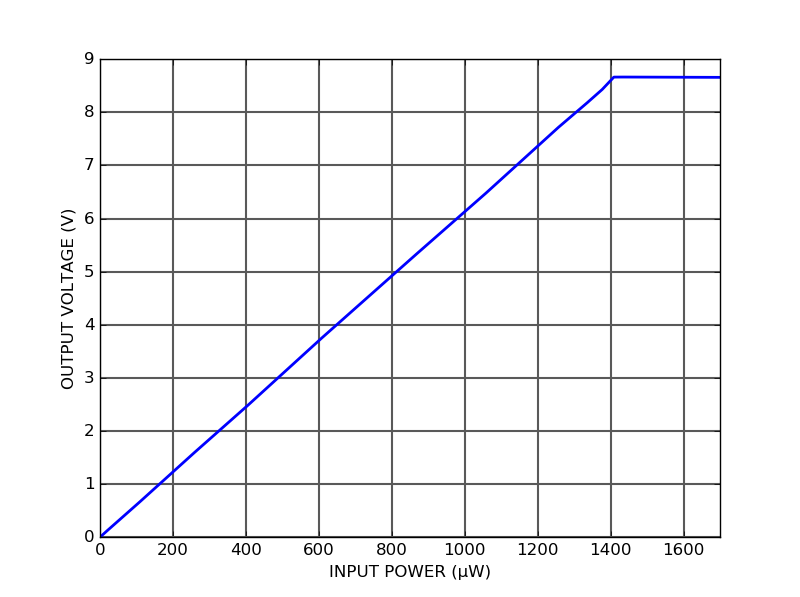

Output voltage vs input optical power
![PD10S-5-DC High dynamic range photodetector output voltage vs input power PD10S-5-DC High dynamic range photodetector output voltage vs input power](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_output-voltage-vs-input-power.png?01072024141256)

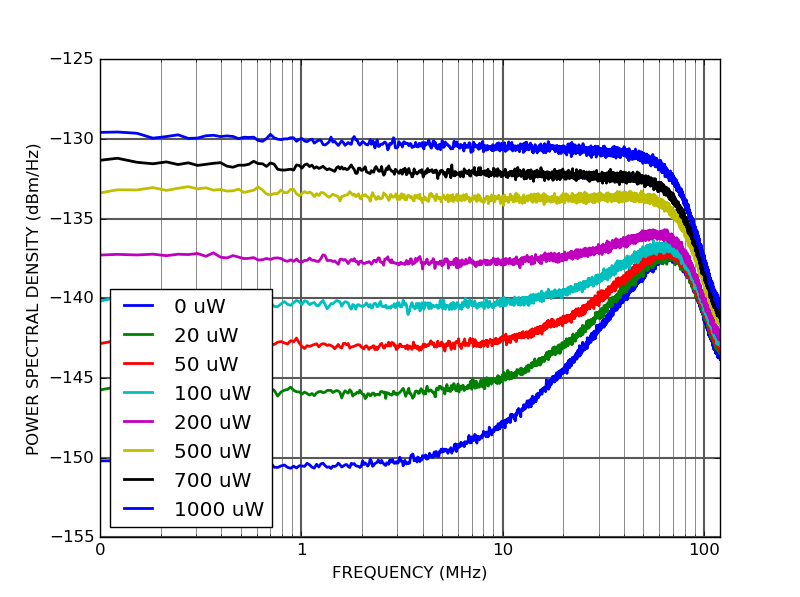

Output power spectral density
The power spectral density of the PD10S-5-DC output was measured for different incident optical powers. Optical source is a Koheron LD101 laser at 1550 nm. Power spectrum is measured using the Koheron ALPHA250 FFT analyzer.
![PD10S-5-DC High dynamic range photodetector power spectral density PD10S-5-DC High dynamic range photodetector power spectral density](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_power-spectral-density_vs_optical-power.png?01072024141256)
Frequency response

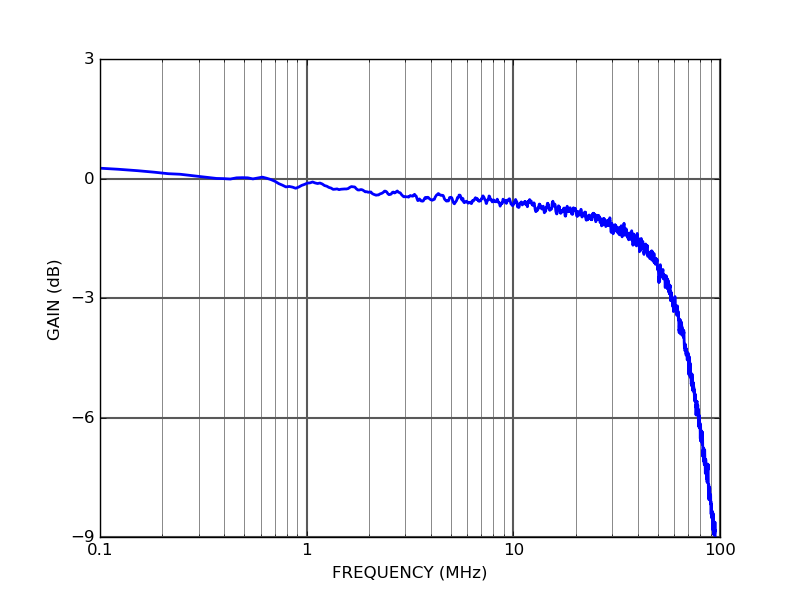

Small signal
![PD10S-5-DC High dynamic range photodetector small signal frequency response PD10S-5-DC High dynamic range photodetector small signal frequency response](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_small-signal-frequency-response.png?01072024141256)

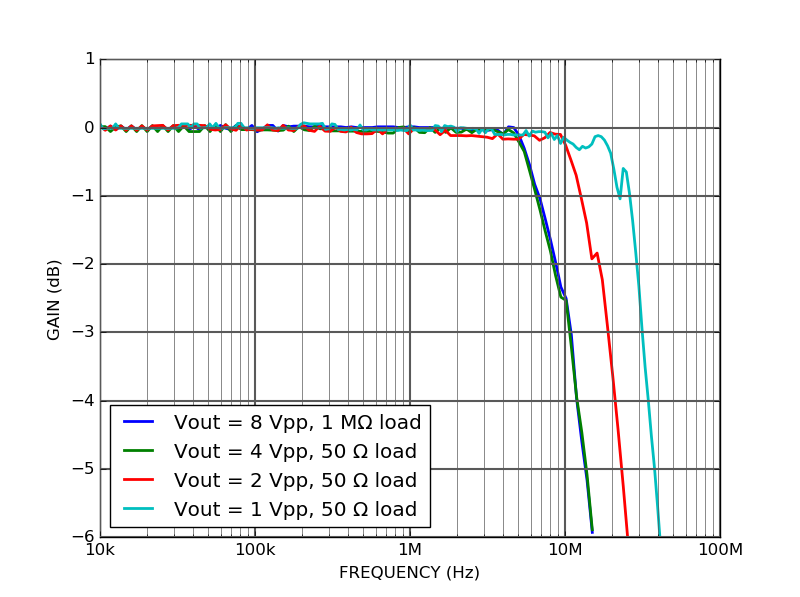

Large signal
Measured with an average input optical power of 777 µW.
![PD10S-5-DC High dynamic range photodetector large signal frequency response PD10S-5-DC High dynamic range photodetector large signal frequency response](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_large-signal-frequency-response.png?01072024141256)

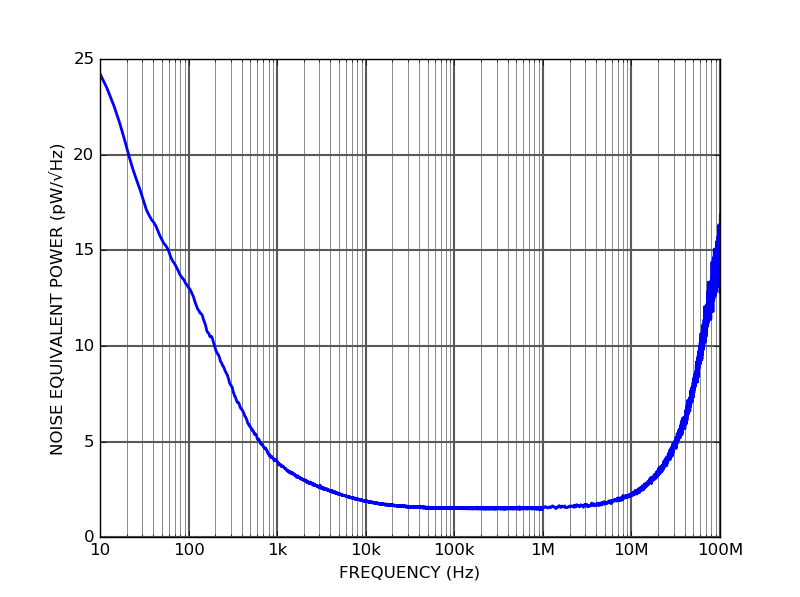

Noise equivalent power
![PD10S-5-DC High dynamic range photodetector noise equivalent power PD10S-5-DC High dynamic range photodetector noise equivalent power](https://assets.koheron.com/images/products/pd10s/PD10S-5-DC_noise-equivalent-power.png?01072024141256)
