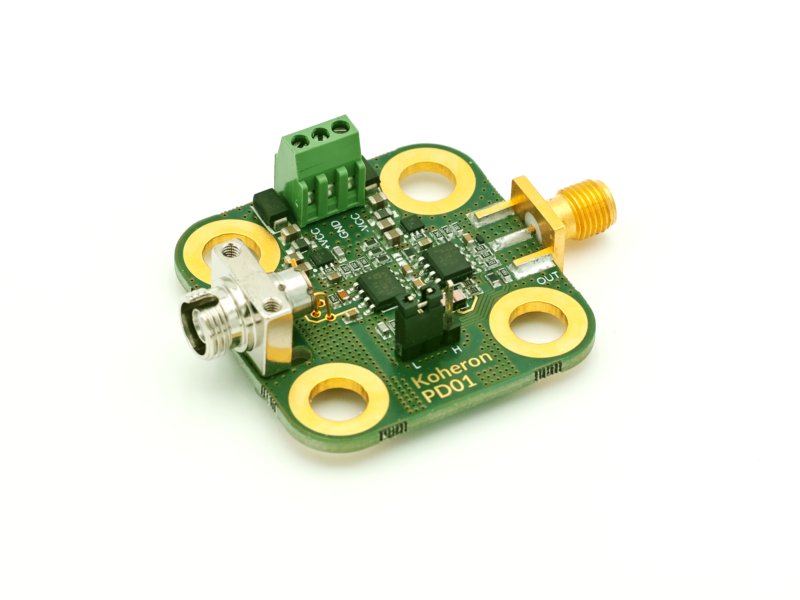

PD01 High sensitivity photodetector
PD01 High sensitivity photodetector PD01 High sensitivity photodetector noise equivalent power PD01 High sensitivity photodetector frequency response

Koheron PD01 is an InGaAs transimpedance amplified photodetector with a Noise Equivalent Power (NEP) of 500 fW/√Hz at 10 kHz. It accepts up to 50 µW of optical power and has a 3 dB bandwidth of 400 kHz. The AC-coupled output and the adjustable gain enable easy interfacing with analog-to-digital converters.

Quantity Price

Resources

Specifications

PD01-AC-400 PD01-DC-400
Detector
Detector type InGaAs photodiode InGaAs photodiode
Photodiode active diameter 300 µm 300 µm
Photodiode connector FC FC
Wavelength range 900 nm to 1700 nm 900 nm to 1700 nm
Peak wavelength 1550 nm 1550 nm
Optical input power 0 µW to 50 µW 0 µW to 50 µW
Photodiode peak responsivity 0.9 A/W 0.9 A/W
Transimpedance amplifier
Small signal bandwidth(at 3 dB) 1 Hz to 400 kHz 0 Hz to 400 kHz
Coupling AC DC
Impulse response(FWHM) 1 µs 1 µs
Noise Equivalent Power(at 10 kHz) 500 fW/√Hz 500 fW/√Hz
Transimpedance gain(L setting, high impedance) 240 kV/A 240 kV/A
Transimpedance gain(L setting, 50 Ω) 120 kV/A 120 kV/A
Transimpedance gain(H setting, high impedance) 2400 kV/A 2400 kV/A
Transimpedance gain(H setting, 50 Ω) 1200 kV/A 1200 kV/A
Output impedance 50 Ω 50 Ω
Output current max 20 mA 20 mA
Output voltage(high impedance) 28 Vpp 28 Vpp
Output voltage(50 Ω) 2 Vpp 2 Vpp
Output slew rate(high impedance) 20 V/µs 20 V/µs
Detector
Output slew rate(50 Ω) 10 V/µs 10 V/µs
Power supplies
Positive supply voltage 15 V 15 V
Negative supply voltage -15 V -15 V
Other
Outside dimensions 38 mm x 54 mm x 14 mm 38 mm x 54 mm x 14 mm
Weight 15 g 15 g
Output SMA SMA
Mechanical details Compatible with M6 metric breadboards (25 mm spacing) Compatible with M6 metric breadboards (25 mm spacing)
Operating temperature 0 °C to 50 °C 0 °C to 50 °C

More Photodetectors

Characterization

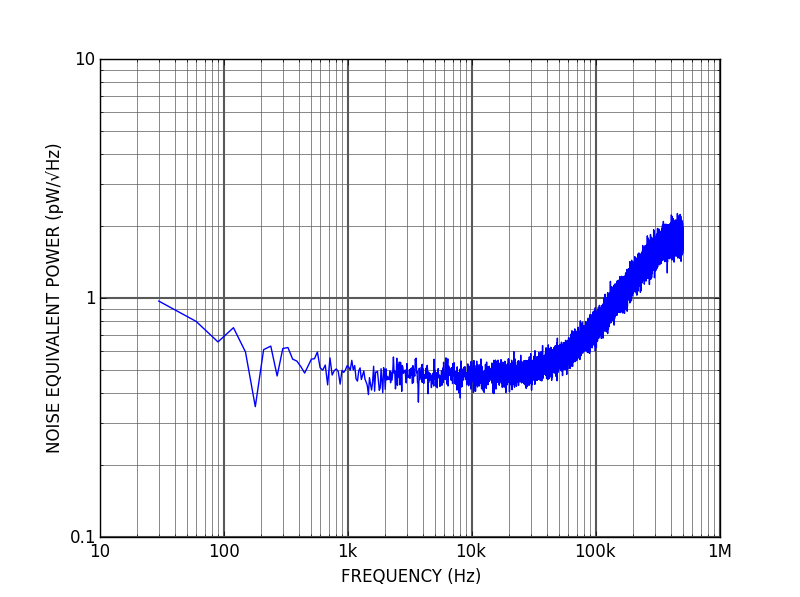

Noise performance

PD01-AC-400 High sensitivity photodetector noise equivalent power
PD01-AC-400 noise equivalent power

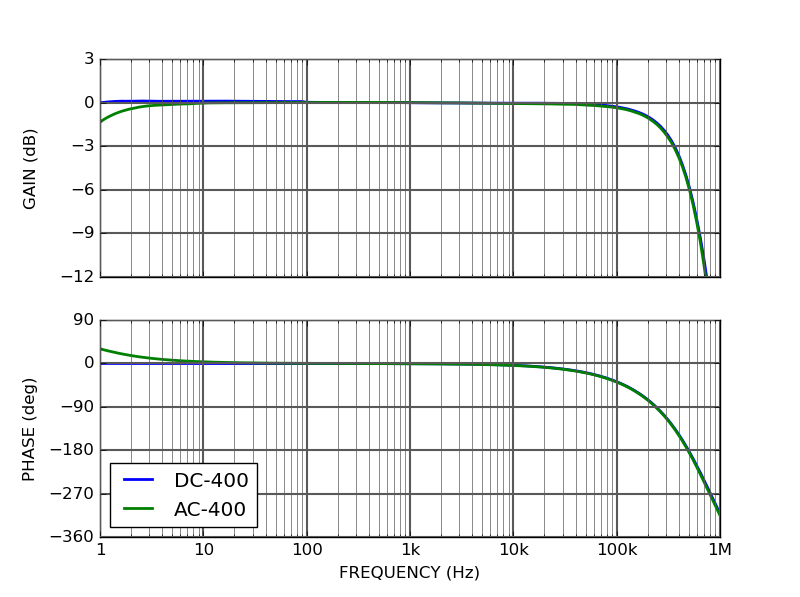

Frequency response

PD01 High sensitivity photodetector frequency response
PD01 frequency response

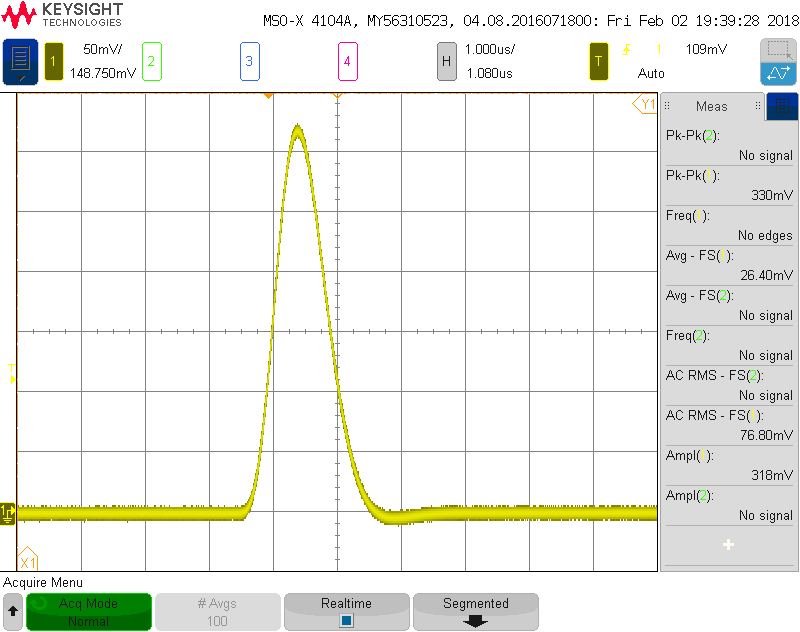

Impulse response

PD01 High sensitivity photodetector impulse response
PD01 impulse response

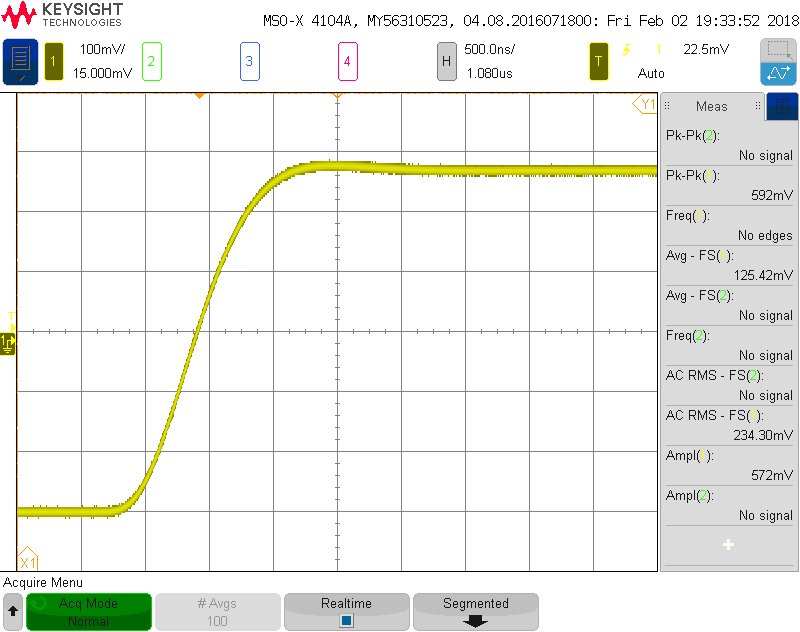

Step response

PD01 High sensitivity photodetector step response
PD01 step response

Ordering codes

PRODUCT NUMBER ATTRIBUTE
PD01-AC-400 Coupling AC
PD01-DC-400 Coupling DC

Export information

PRODUCT NUMBER COUNTRY OF ORIGIN HS CODE HTSUS ECCN
PD01-AC-400 France 85414900 8541499500 EAR99
PD01-DC-400 France 85414900 8541499500 EAR99
